Walfront 35M-4.4GHz RF Signal Source Phase Locked Loop Frequency Synthesizer ADF4351 Development Board - Ideal for RF Testing, Wireless Communication & Electronics Projects

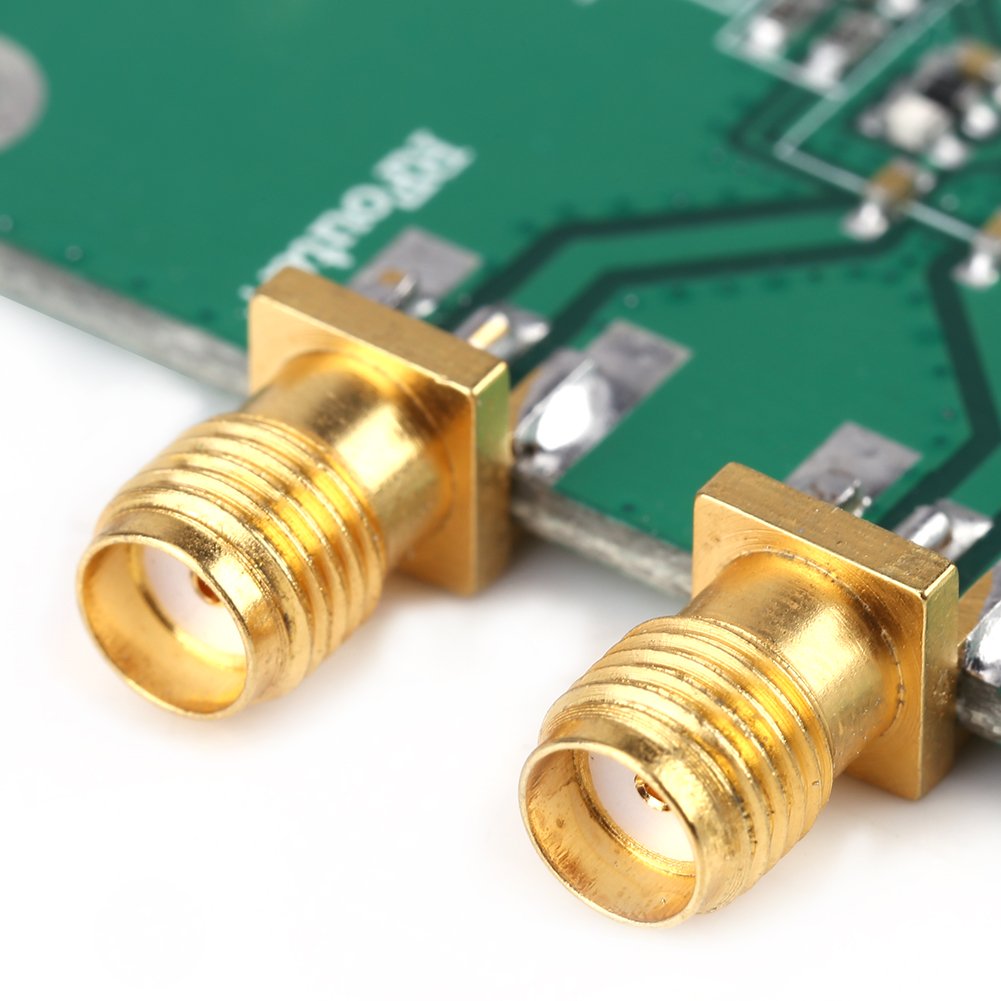

Features: This ADF4351 signal source development board has well designed circuit board layout. It can be controlled by the upper computer official software. All control pins are leaded out for convenient operation. Default + -50ppm 25M active crystal oscillator. Specifications: Output frequency range: 35MHz - 4.4GHz Supply voltage: 4-9V (5VDC) Output signal: 2.2GHZ--4.4GHz sine wave (fundamental) 35MHZ--2.2GHz squarewave (fundamental division) Output signal: output speed, signal strength: + 5dBm (programmable) RF connector: SMA female head Control Interface: Three-wire Serial Peripheral Interface Bus Reference Clock: 10.000MHZ (default), through the interface to an external SMA Size: Approx. 4.8 x 4.9cm / 1.89 x 1.93inch Weight:15g Connection: The module can pin microcontroller LCD1602 / LCD12864 module connection (can be plugged directly Backward), convenient software debugging, both lock indicator (Lock). Pin correspond to the following: 1.GND ------------------------- GND 2.VDD (5V) ------------------- VCC 3.VO -------------------------- NC (empty) 4.RS -------------------------- NC (empty) 5.R / W ------------------------- MUXOUT 6.EN -------------------------- CLK 7.DB0 ------------------------- DATA 8.DB1 ------------------------- LE 9.DB2 ------------------------- CE (has 10K pullup) 10.DB3 ------------------------- GND (do not take) RF output: For ease of use, the default is broadband output, the output of two differential signals, one way can be used to output use, the other way can be used to monitor the output. Package included: 1 x ADF4351 Frequency Synthesizer

Rango de frecuencia de salida de RF 35M a 4.4GHz, oscilador de cristal activo predeterminado + -50ppm 25M.

Esta placa de desarrollo de fuente de señal ADF4351 tiene un diseño de placa de circuito bien diseñado.

El sintetizador de frecuencia puede ser controlado por el software oficial de la computadora superior.

Todos los pines de control tienen plomo para una operación conveniente.

Cable de bus de interfaz periférico serial de tres cables al pin de control y al pin de bloqueo de estado, lo que permite todas las funciones, incluido el barrido de frecuencia puntual y el salto de frecuencia.
